Triangle Pack Batteries

Discover our high-capacity Triangle Pack Batteries, designed for long-range and off-road eBikes. Engineered for frame triangle integration, these packs offer stable output and excellent space utilization. As your trusted supplier, we deliver safe, durable, and fully customizable solutions that meet the demands of performance-driven eBike projects.

Custom Triangle Pack Battery Manufacturer

At Junda, we understand the importance of triangle pack batteries for high-performance eBike applications. As a specialized manufacturer, we offer custom battery solutions tailored to your voltage, capacity, and design requirements. With years of experience in e-mobility power systems, we’re a trusted partner for brands seeking safe, reliable, and frame-integrated battery packs. Contact us today to explore how we can support your next eBike project.

Custom Triangle Pack Battery Model List

Electric bike battery with protective cover
1
2

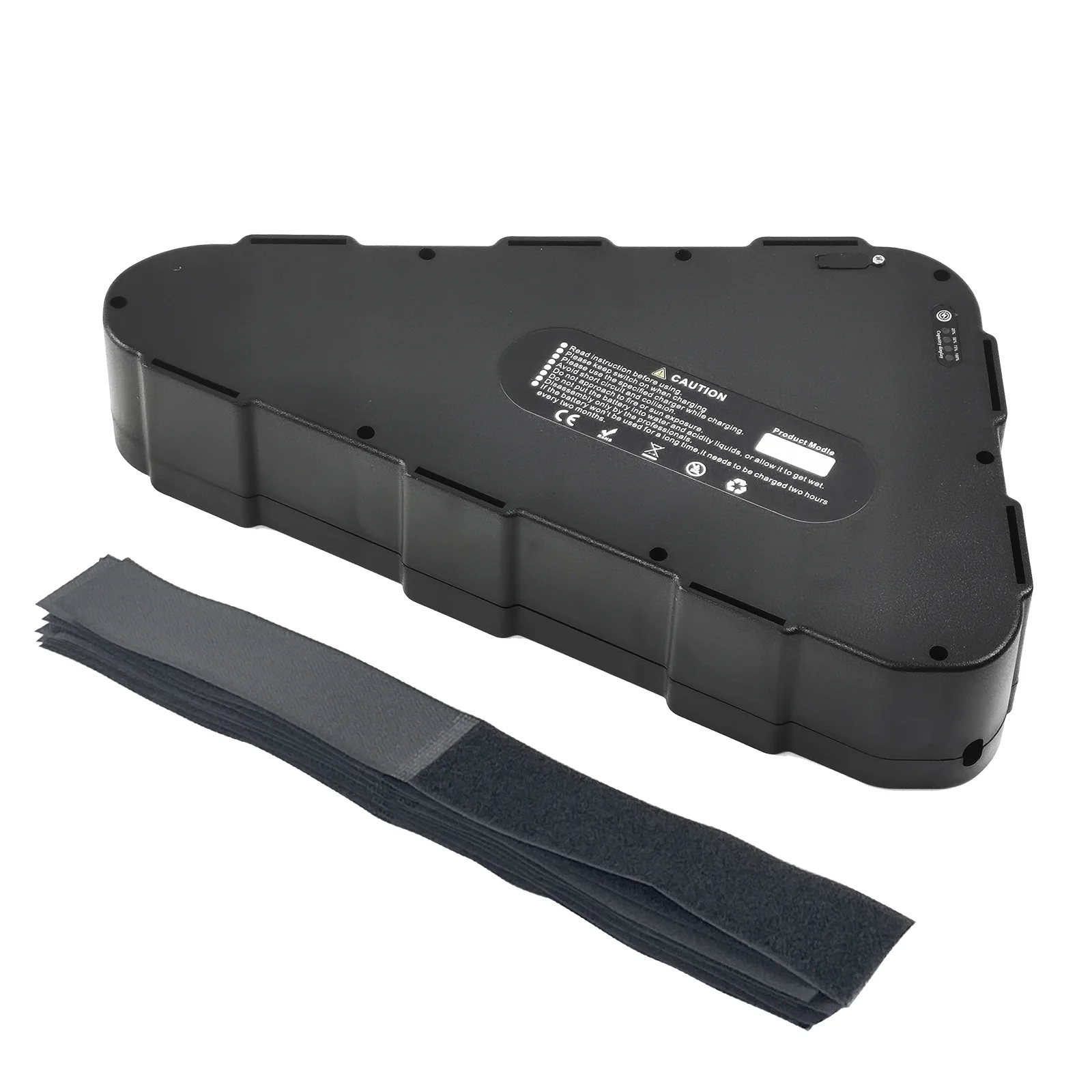

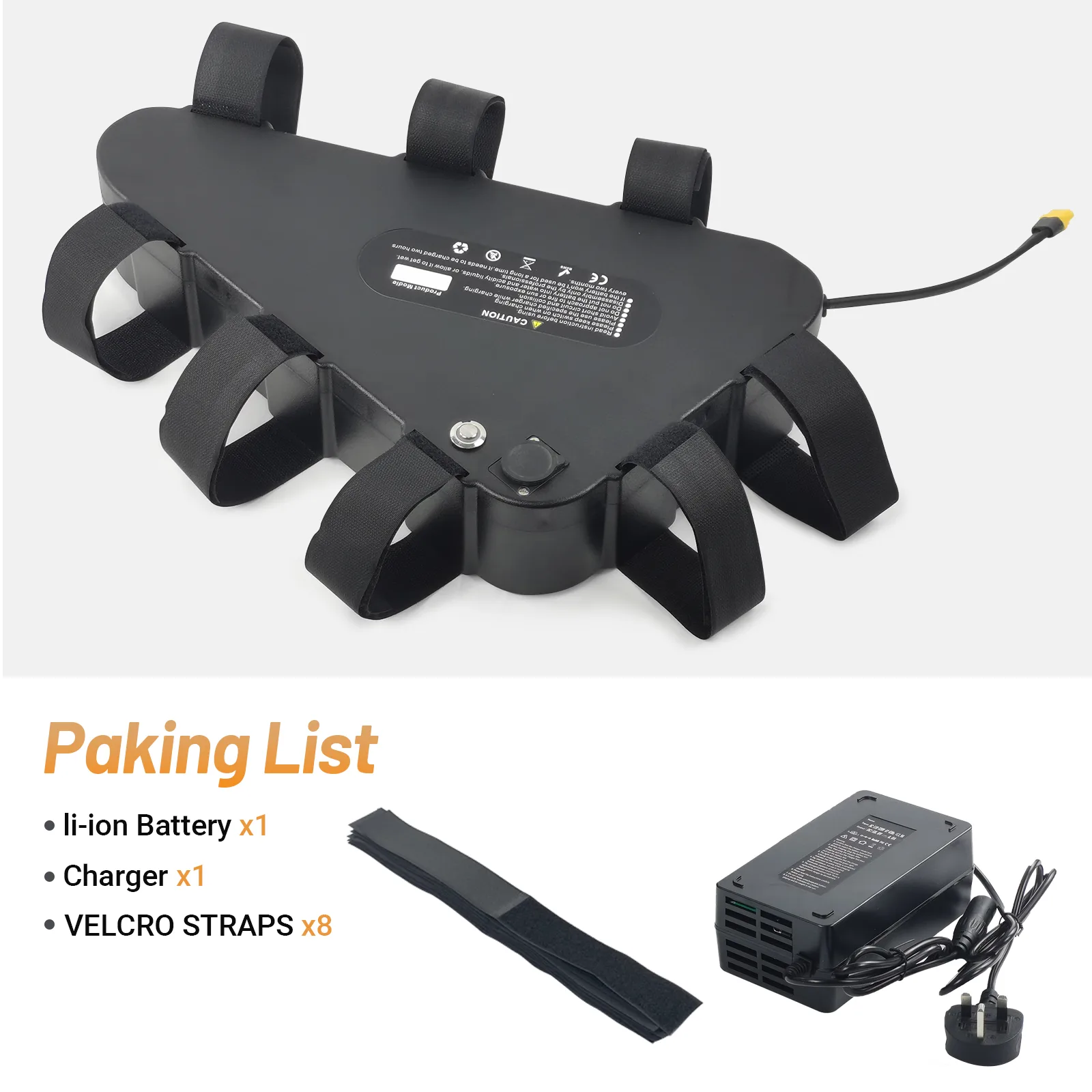

Triangle battery with straps, charger, and Velcro straps.

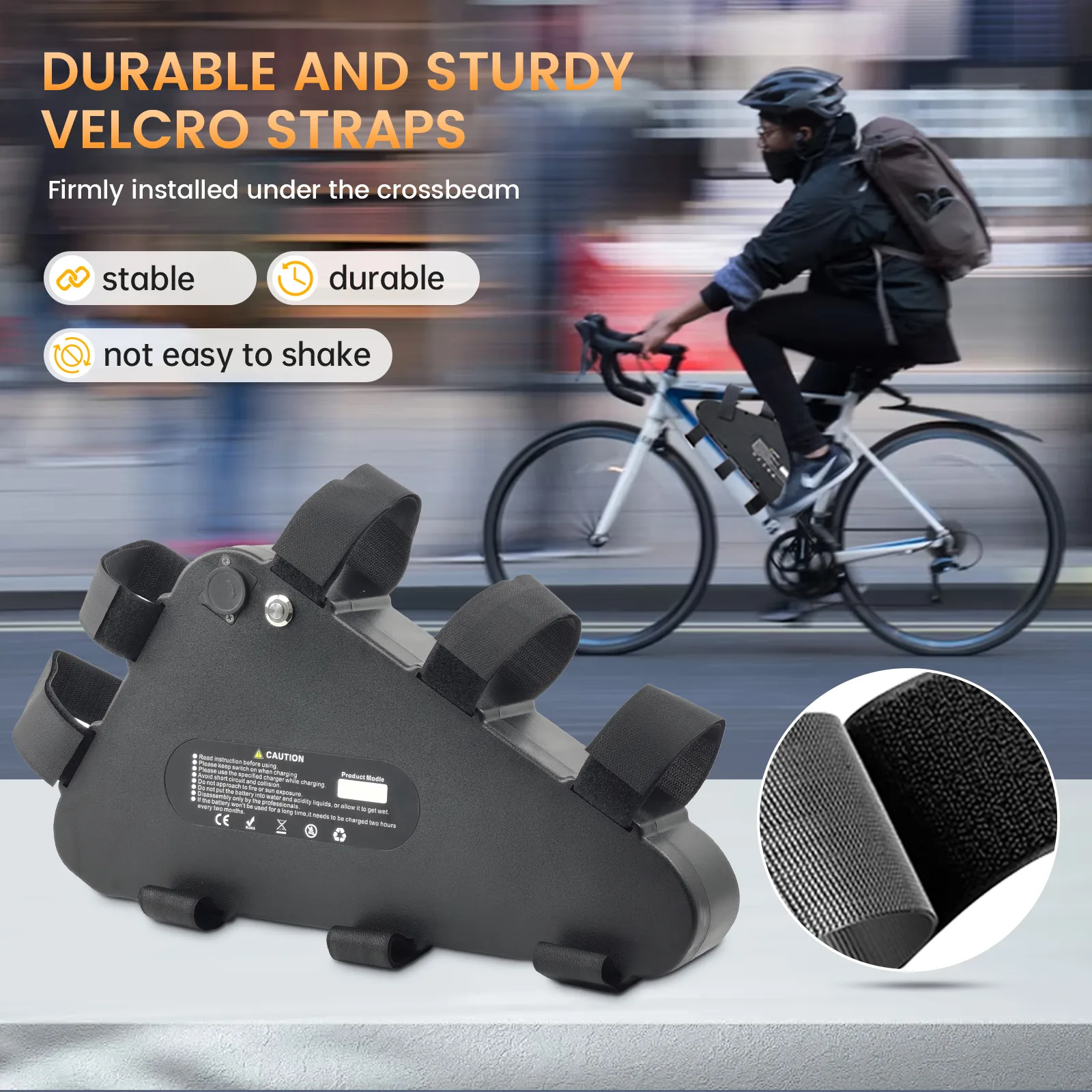

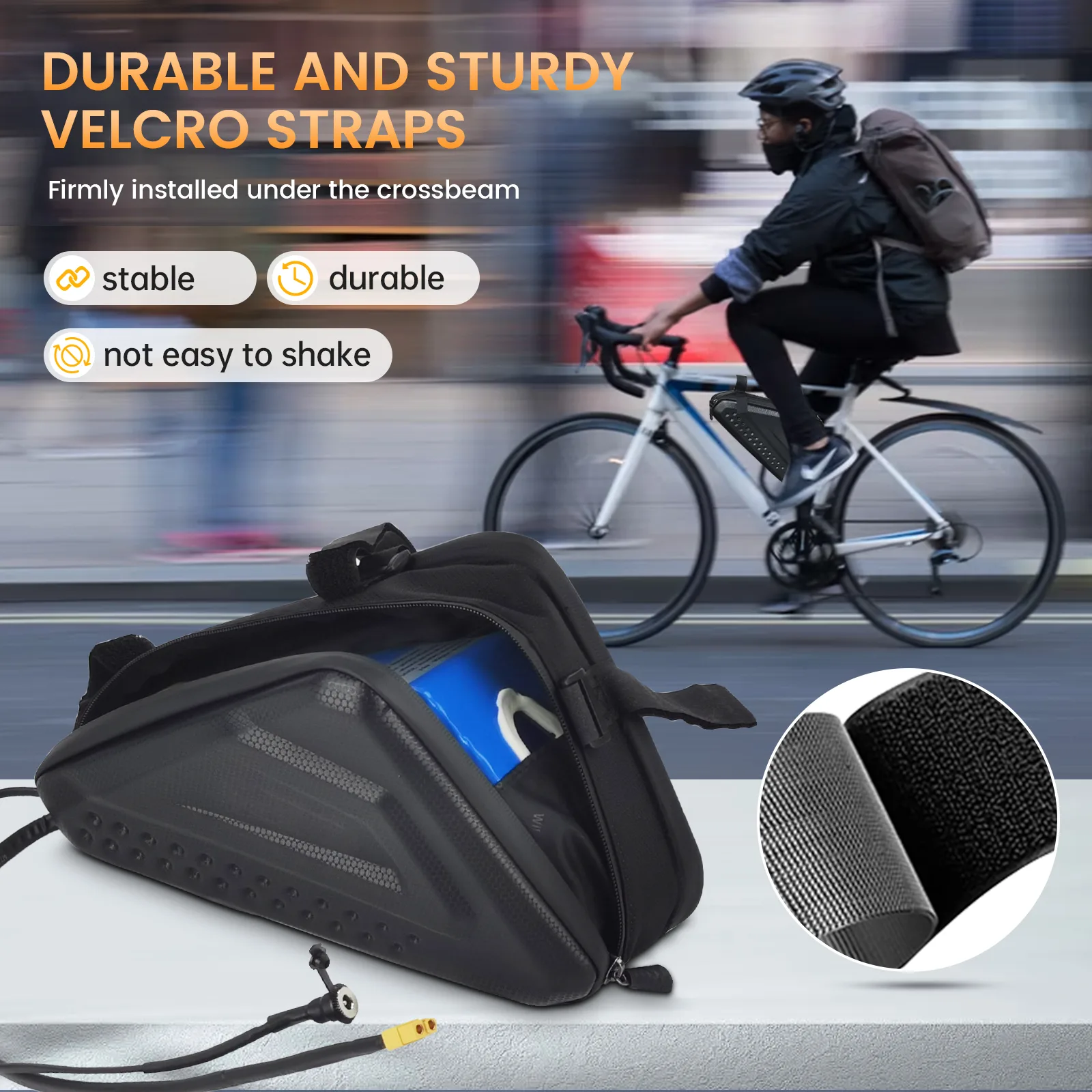

Durable bike velcro straps ensure stability on ride.

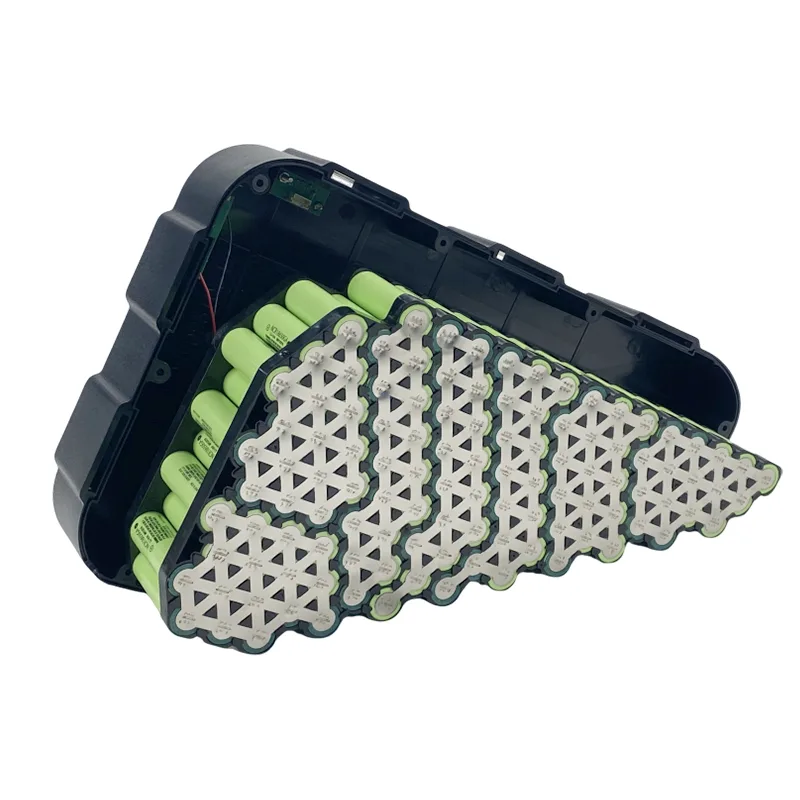

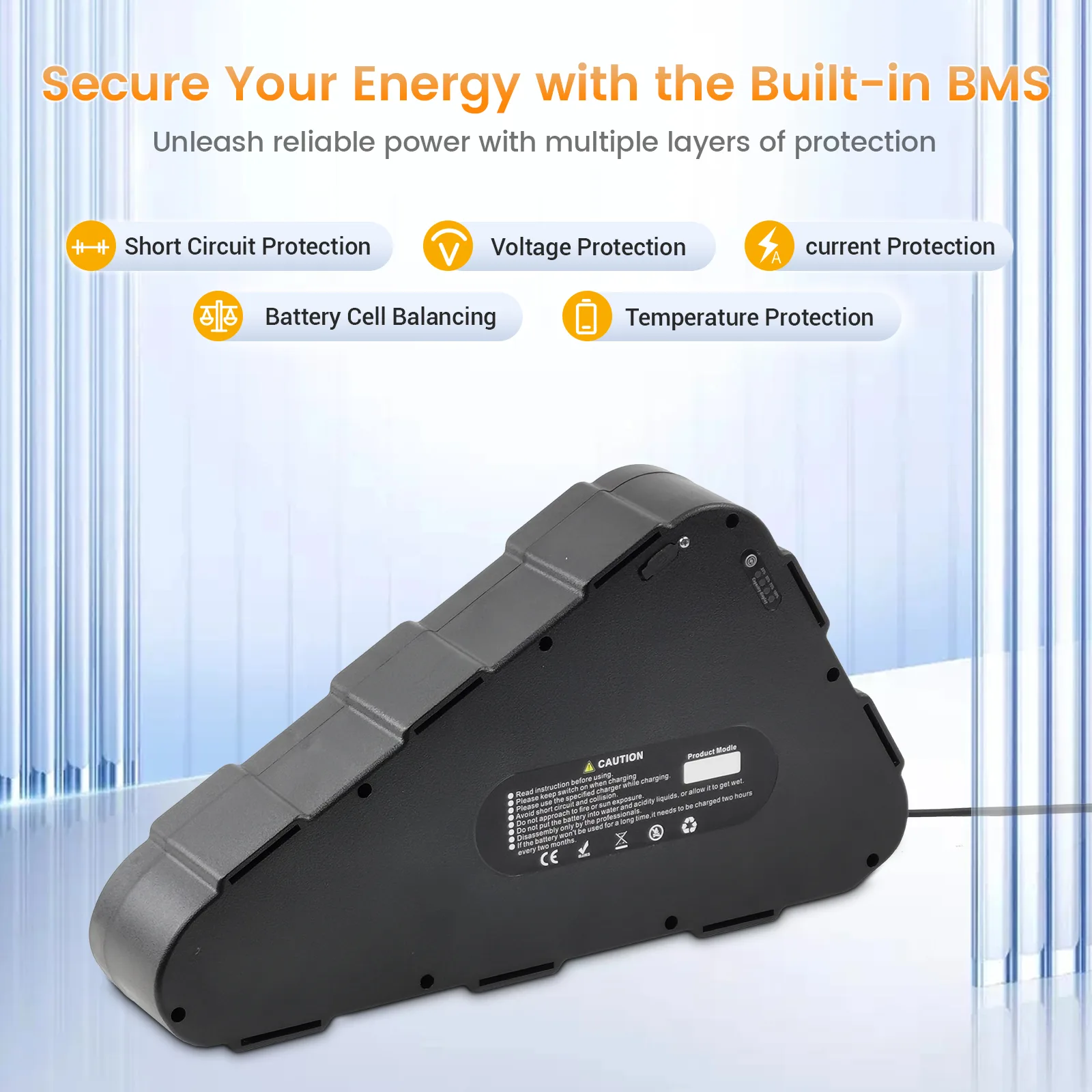

Battery with BMS for enhanced protection features

JD-1008 Triangle Ebike Battery (36V / 48V / 52V) – Plastic Triangle Pack 395×365×232×80mm

Voltage Capacity Cell Config Charge Current (A) Operating Temp (°C) Connector Cycle Life Warranty Certs
36V18AhDMEGC 300010S6P5A-20~60 / 0~45XT60800–1000 cycles12 monthsUN38.3 / CE
36V20.8AhDMEGC 260010S8P5A-20~60 / 0~45XT60800–1000 cycles12 monthsUN38.3 / CE
36V23.4AhDMEGC 260010S9P5A-20~60 / 0~45XT60800–1000 cycles12 monthsUN38.3 / CE
36V26AhDMEGC 260010S10P5A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
36V28.6AhDMEGC 260010S11P5A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
36V33AhDMEGC 300010S11P5A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
36V35.2AhDMEGC 320010S11P5A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
36V38.5AhSamsung 35E10S11P5A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
48V18.2AhDMEGC 260013S7P5A-20~60 / 0~45XT60800–1000 cycles12 monthsUN38.3 / CE
48V20.8AhDMEGC 260013S8P5A-20~60 / 0~45XT60800–1000 cycles12 monthsUN38.3 / CE
48V24AhDMEGC 300013S8P5A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
48V25.6AhDMEGC 320013S8P5A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
48V28AhSamsung 35E13S8P5A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
52V18.2AhDMEGC 260014S7P5A-20~60 / 0~45XT60800–1000 cycles12 monthsUN38.3 / CE
52V20.8AhDMEGC 260014S8P5A-20~60 / 0~45XT60800–1000 cycles12 monthsUN38.3 / CE
52V24AhDMEGC 300014S8P5A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
52V25.6AhDMEGC 320014S8P5A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
52V28AhSamsung 35E14S8P5A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
Get A Quote

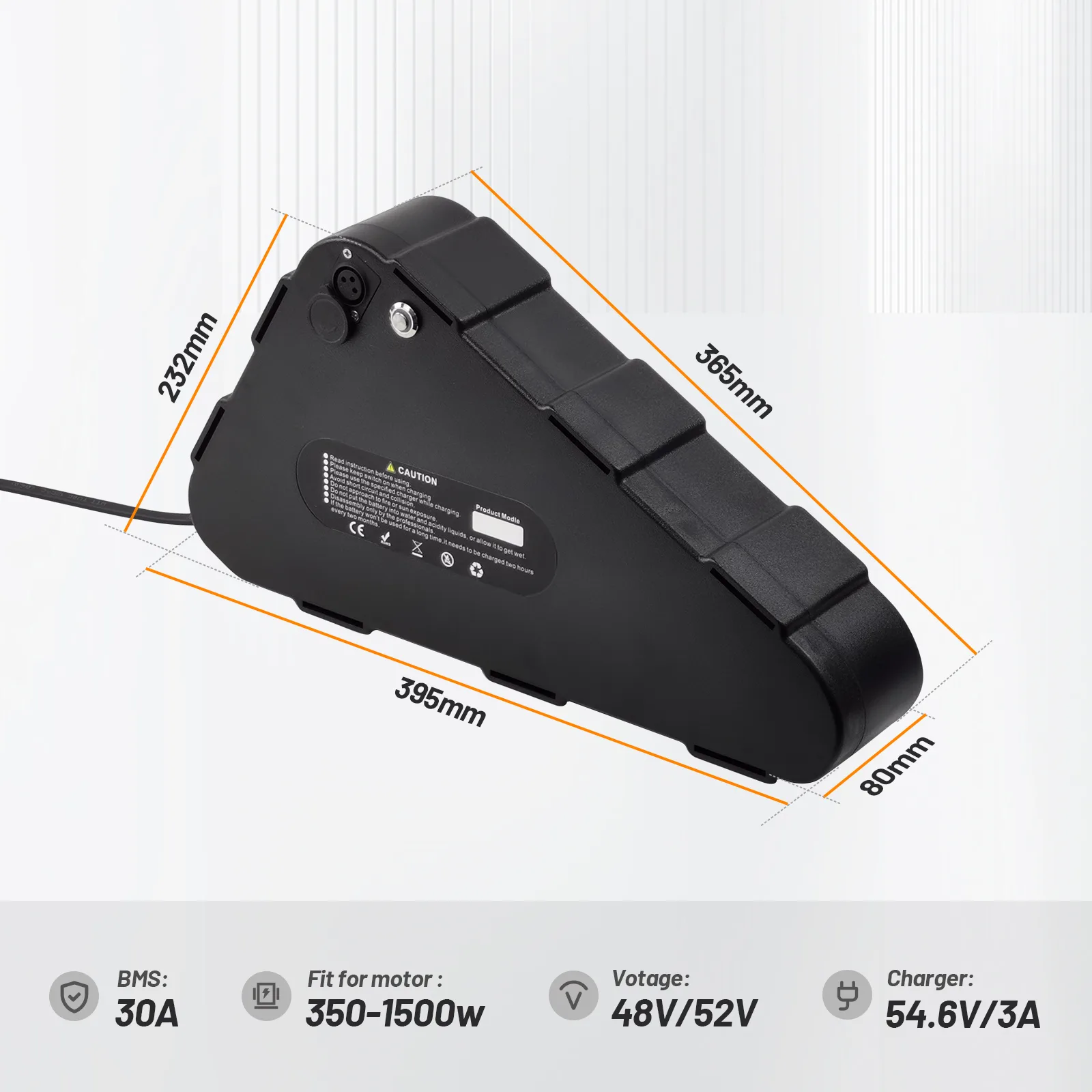

Black bike battery with protection features

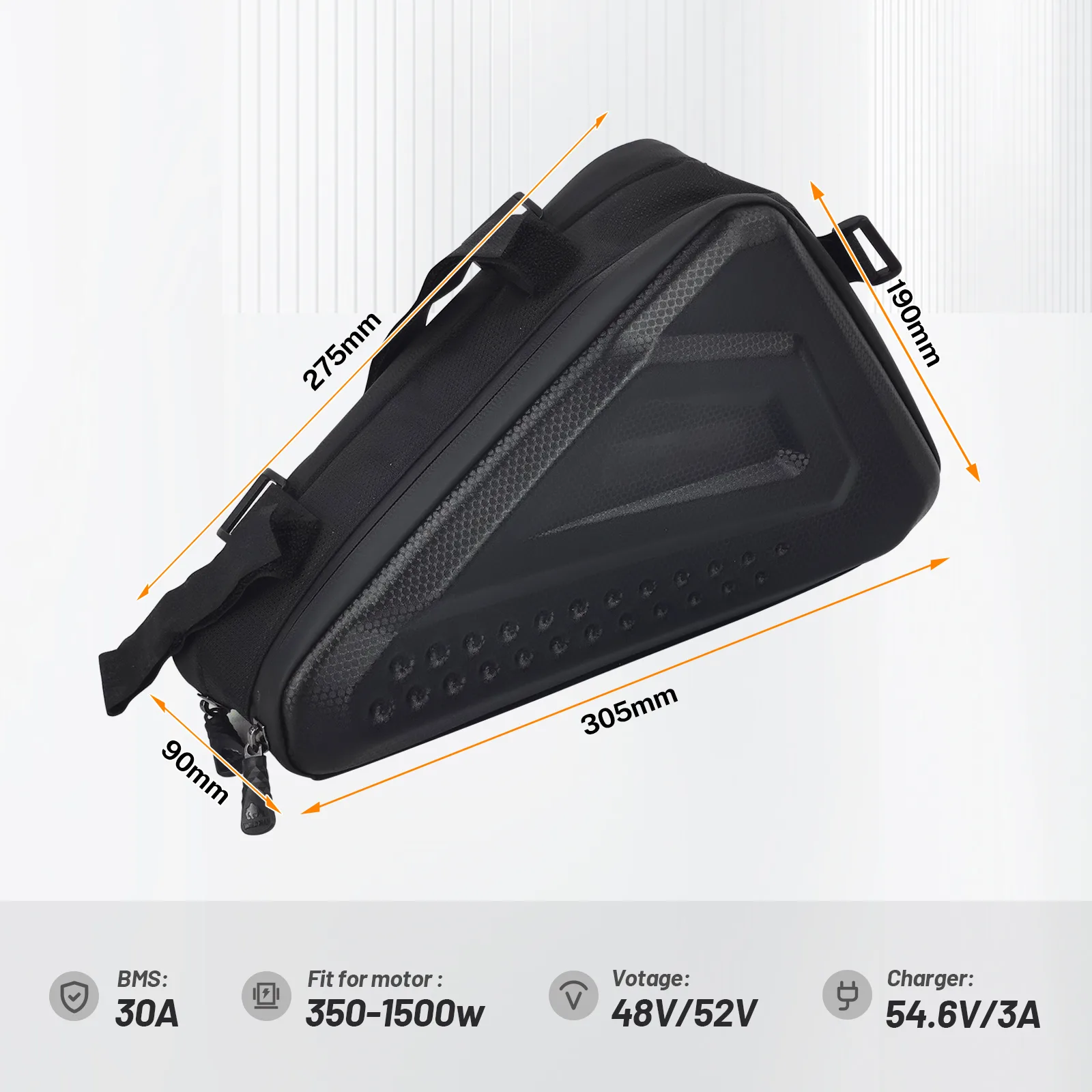

Electric bike battery with black carrying case

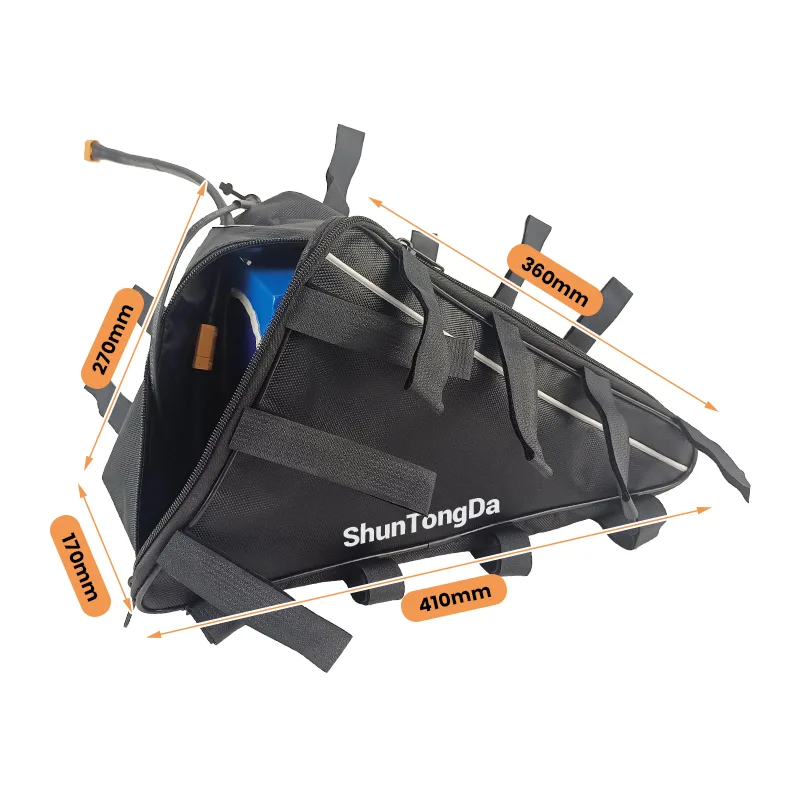

Black triangular bike battery bag with dimensions labeled.

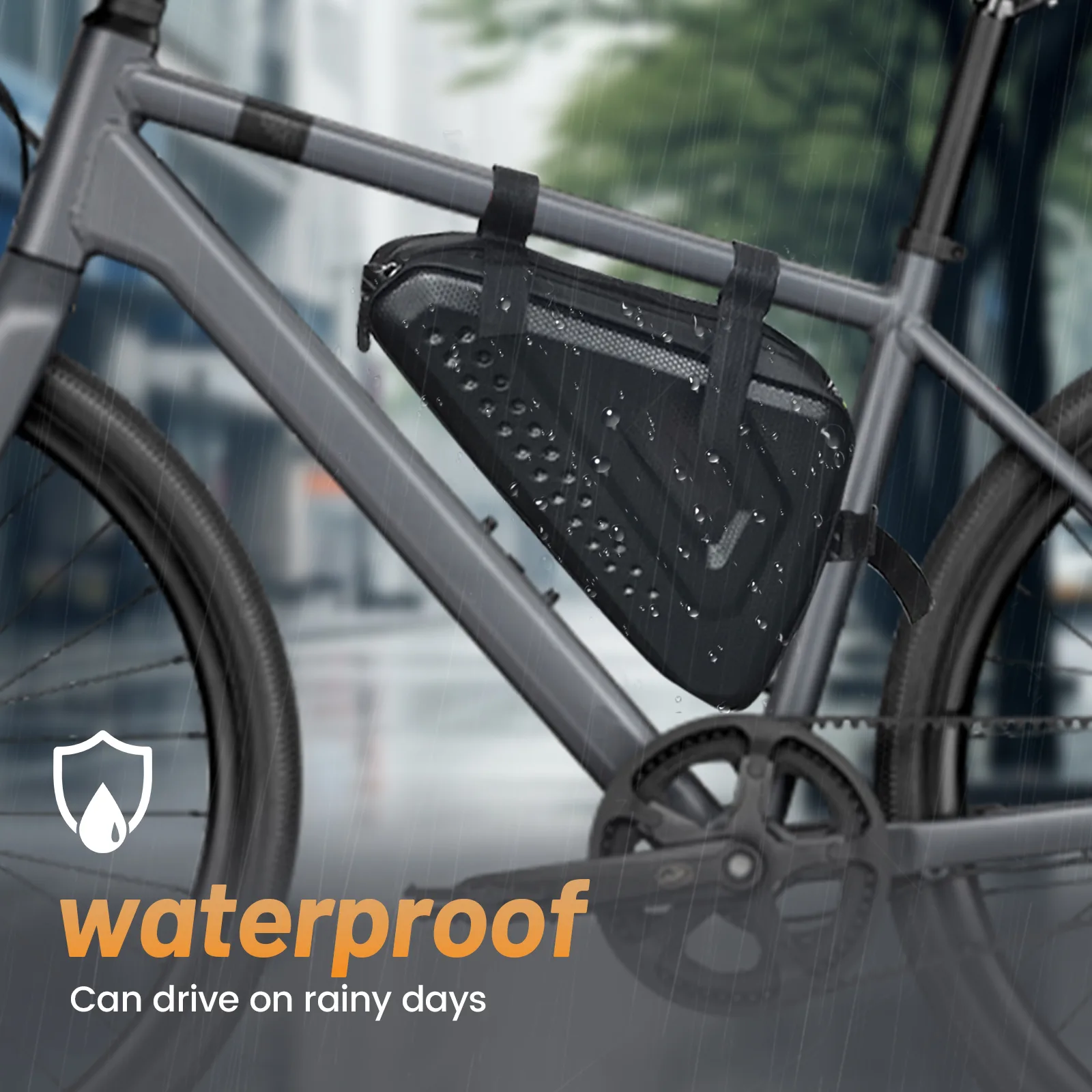

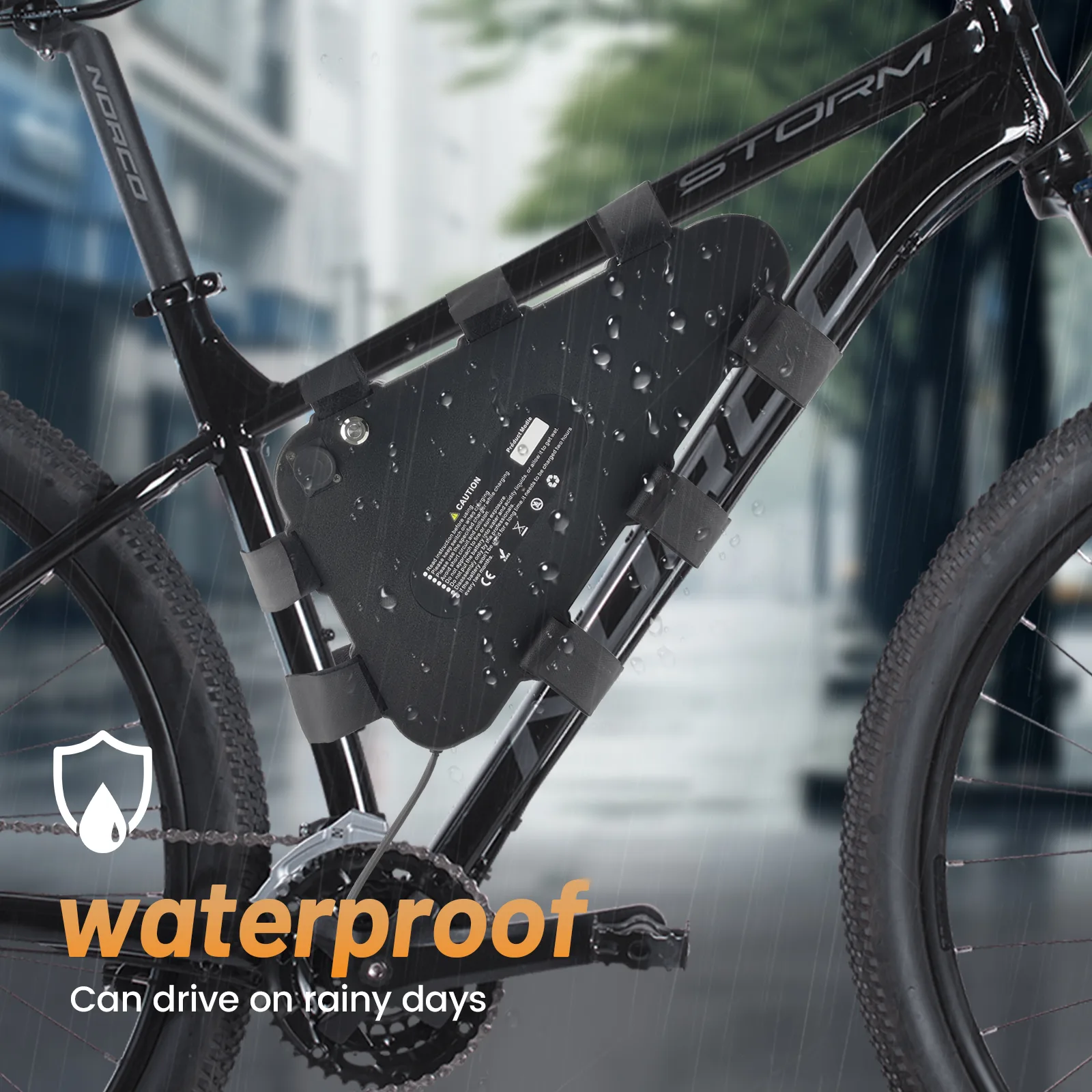

Waterproof bike bag attached, suitable for rainy rides.

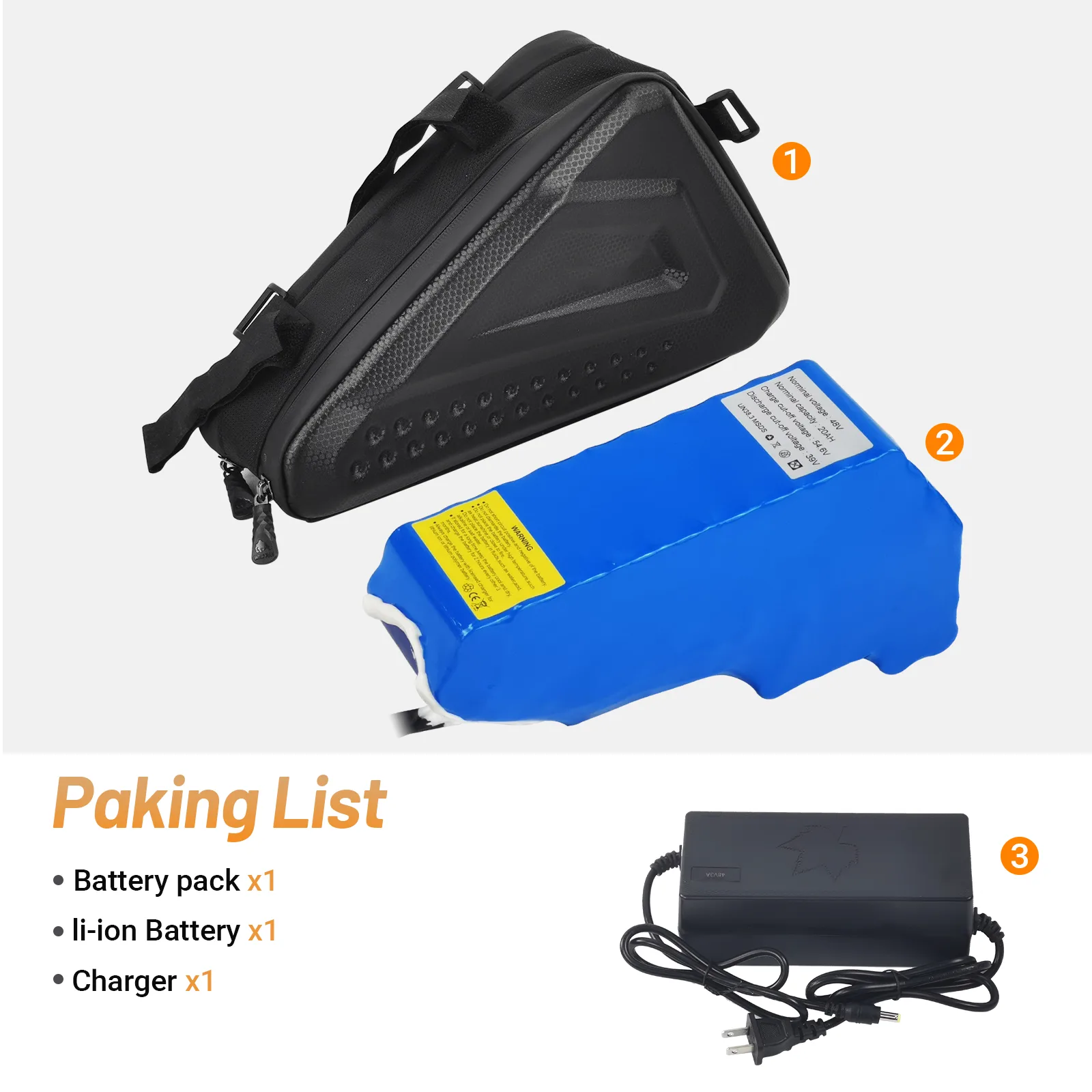

Bike battery pack, charger, and case set displayed.
4

JD-1009 Triangle Ebike Battery (36V / 48V / 52V) – Small Triangle Pack 305×275×190×60×90mm

Voltage Capacity Cell Config Charge Current (A) Operating Temp (°C) Connector Cycle Life Warranty Certs
36V10AhDMEGC 260010S4P5A-20~60 / 0~45XT60800–1000 cycles12 monthsUN38.3 / CE
36V13AhDMEGC 260010S5P5A-20~60 / 0~45XT60800–1000 cycles12 monthsUN38.3 / CE
36V15AhDMEGC 300010S5P5A-20~60 / 0~45XT60800–1000 cycles12 monthsUN38.3 / CE
36V16AhDMEGC 320010S5P5A-20~60 / 0~45XT60800–1000 cycles12 monthsUN38.3 / CE
36V17.5AhSamsung 35E10S5P5A-20~60 / 0~45XT60800–1000 cycles12 monthsUN38.3 / CE
48V10AhDMEGC 260013S4P5A-20~60 / 0~45XT60800–1000 cycles12 monthsUN38.3 / CE
48V12AhDMEGC 300013S4P5A-20~60 / 0~45XT60800–1000 cycles12 monthsUN38.3 / CE
48V12.8AhDMEGC 320013S4P5A-20~60 / 0~45XT60800–1000 cycles12 monthsUN38.3 / CE
48V14AhSamsung 35E13S4P5A-20~60 / 0~45XT60800–1000 cycles12 monthsUN38.3 / CE
36V20AhEVE 2170010S4P5A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
48V20AhEVE 2170013S4P5A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
52V20AhEVE 2170014S4P5A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
36V20AhSamsung 50GB 2170010S4P5A-20~60 / 0~45XT90
Get A Quote

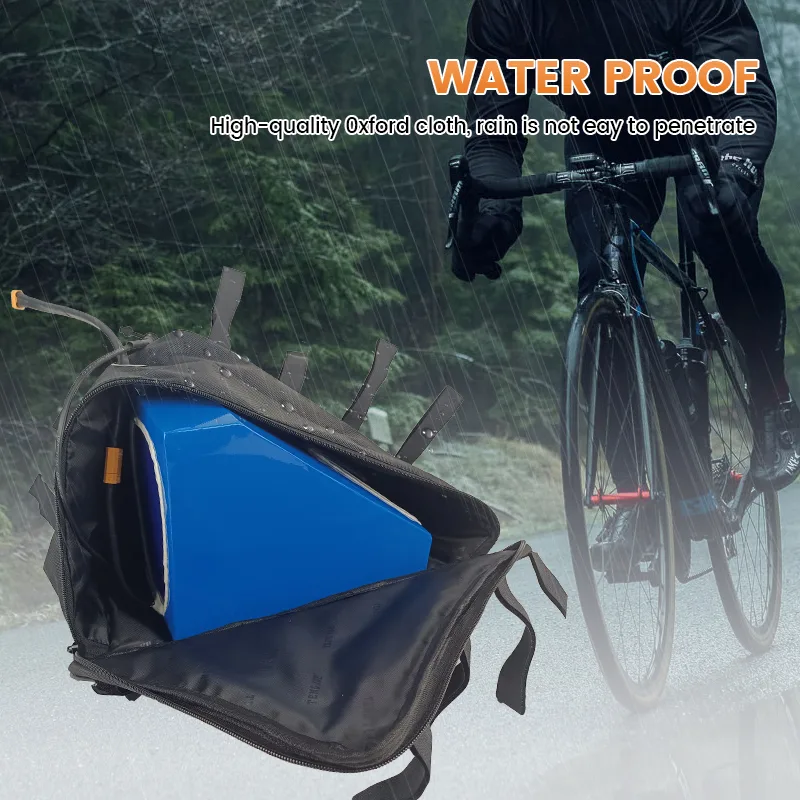

Cyclist in rain with waterproof bag.
7
2

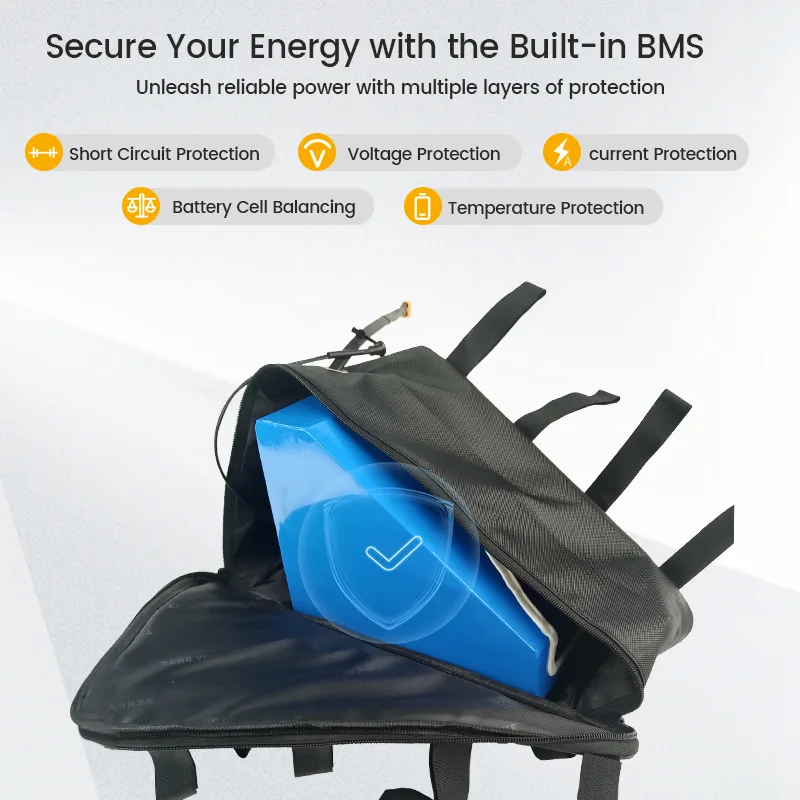

Open backpack with blue item inside

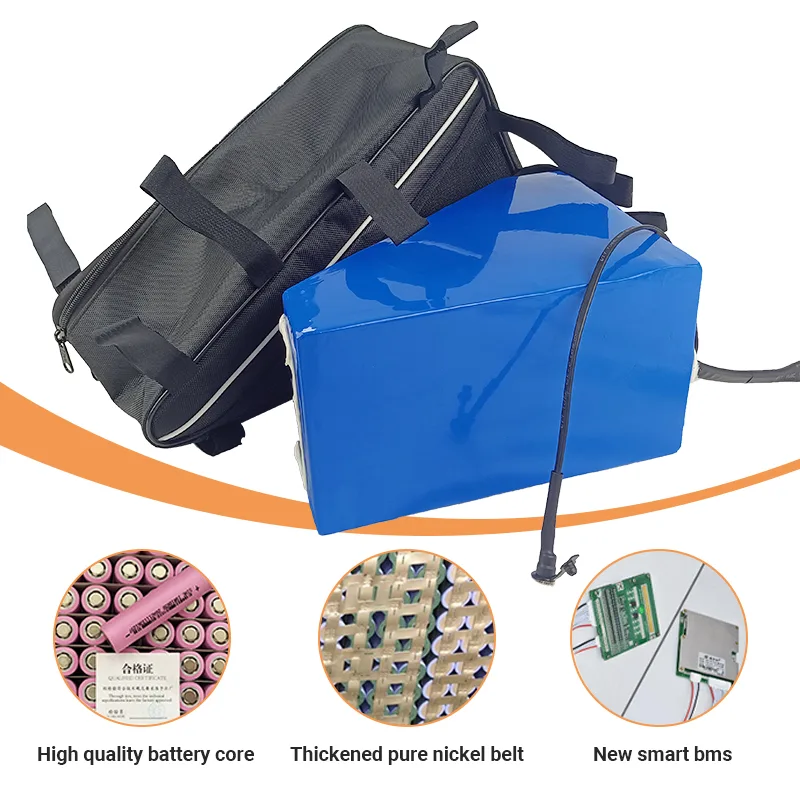

Blue battery pack with components and carry case.

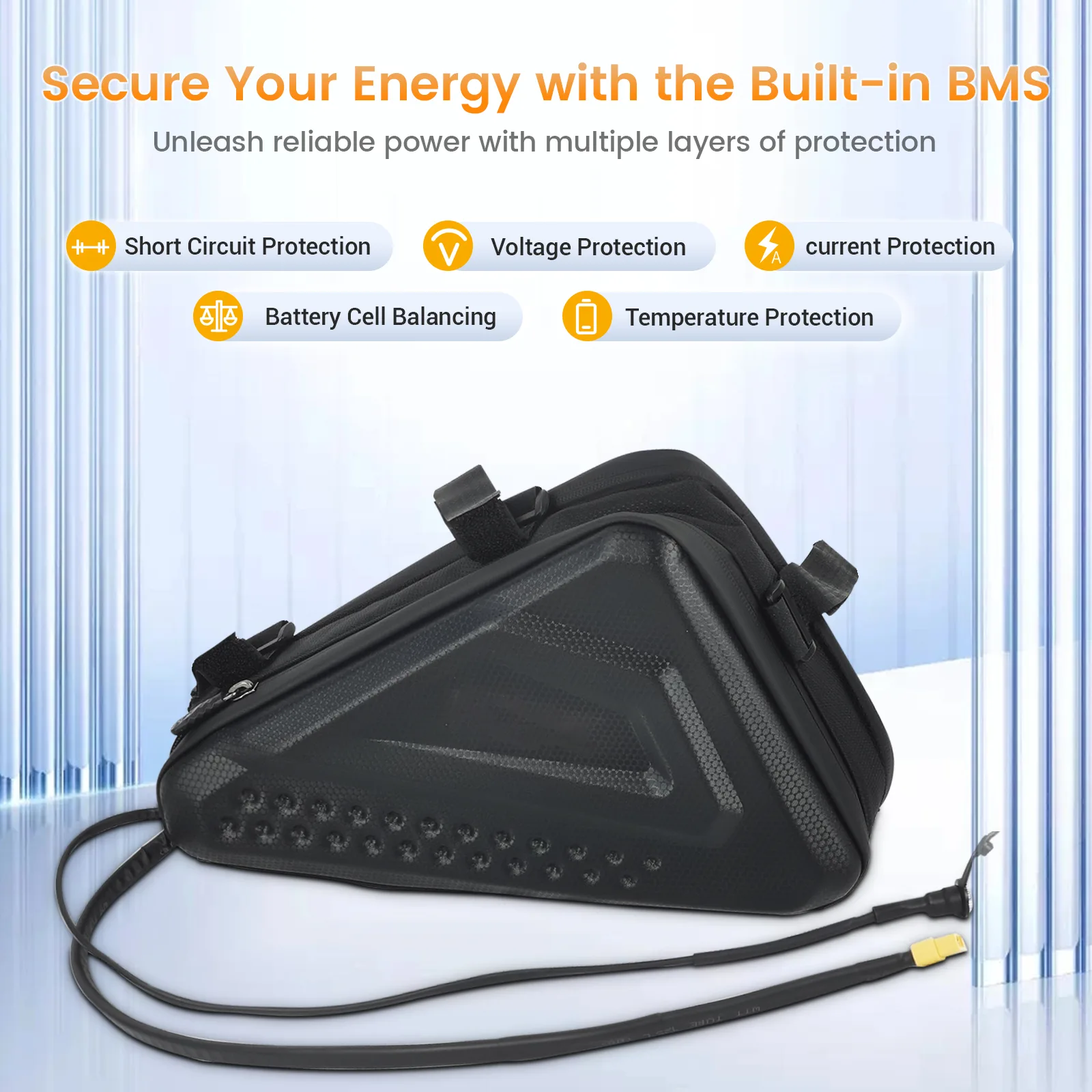

Battery pack with built-in protection features

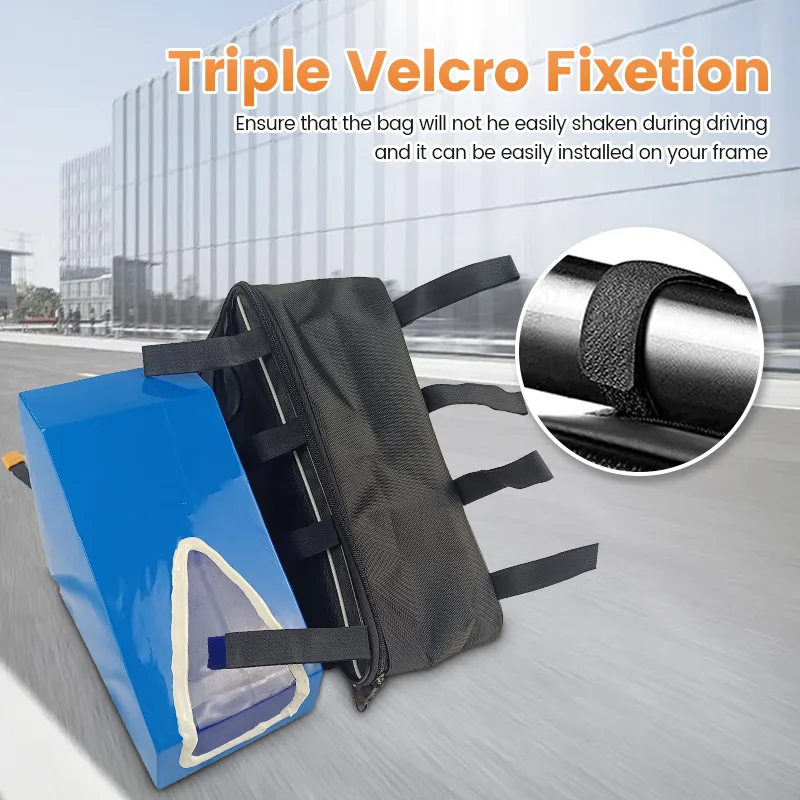

Bike bag with triple Velcro fixation on road.

JD-1023 Triangle Ebike Battery (48V / 52V / 60V / 72V) – Dual-Layer 21700 Triangle Cloth Pack 410×360×270×170mm

Voltage Capacity Cell Config Charge Current (A) Operating Temp (°C) Connector Cycle Life Warranty Certs
48V35AhSamsung 50S 2170013S7P / 91 cells10A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
48V40AhSamsung 50S 2170013S8P / 104 cells10A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
48V45AhSamsung 50S 2170013S9P / 117 cells10A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
48V50AhSamsung 50S 2170013S10P / 130 cells10A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
52V30AhSamsung 50S 2170014S6P / 74 cells10A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
52V35AhSamsung 50S 2170014S7P / 98 cells10A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
52V40AhSamsung 50S 2170014S8P / 112 cells10A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
52V45AhSamsung 50S 2170014S9P / 126 cells10A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
60V35AhSamsung 50S 2170016S7P / 112 cells10A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
60V40AhSamsung 50S 2170016S8P / 128 cells10A-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
72V30AhSamsung 50S 2170020S6P / 120 cells80A / 100A BMS-20~60 / 0~45XT90800–1000 cycles12 monthsUN38.3 / CE
Get A Quote

Customized Triangle Pack Batteries for Your Unique Projects

With modern production facilities and a skilled team, Junda offers flexible manufacturing for Triangle Pack Batteries—suitable for both small-batch customization and large-scale OEM orders. Every battery is built to meet international standards for safety and performance. We support full customization, including:

  • Voltage & Capacity: Customize 36V / 48V / 52V with capacities from 13Ah to 30Ah, depending on your motor and range requirements.
  • Cell Type: Choose from 18650 or 21700 cells by Samsung, LG, or premium Chinese brands.
  • BMS Options: Add features like smart BMS, Bluetooth, temperature protection, or high-discharge support.
  • Connector Type: XT60, Anderson, or other connector types can be configured to match your system.
  • Case Fit & Mounting: Optimized layout and wiring to fit securely in the e-bike triangle frame—ideal for off-road or long-range models.


We build every pack to match your technical goals and market positioning. Contact us today to discuss your project and let us support your success in the e-bike battery market.

  •
Request a Sample

Why Choose Triangle Pack Battery from Junda?

Junda is committed to delivering high-performance Triangle Pack Batteries for mid-drive, off-road, and long-range eBikes. Our experience in lithium battery design and deep knowledge of e-bike integration ensure you get both reliable power and a trusted manufacturing partner.

Engineered for Performance

Designed to fit the frame triangle of full-suspension or utility eBikes, our packs offer high-capacity options and stable power output for demanding conditions.

Certified & Compliant

Every pack is tested and certified to meet international safety standards such as UN38.3, MSDS, CE, and RoHS—ensuring smooth delivery and market access.

No MOQ Barrier

Need just a few units for prototyping? Or ready for large-scale orders? We offer flexible MOQ terms to support both small brands and big distributors.

Proven Production Experience

With 10+ years in lithium battery manufacturing, we operate 7 production lines and ship to over 20 countries. Our factory meets BSCI, ISO, and UL standards.

Full Customization

Choose voltage, capacity, connector type, casing layout, or add smart features like Bluetooth BMS. Your battery, your way.

Cost-Effective Reliability

We combine competitive pricing with strict quality control—so you get durable, high-quality batteries that support long-term business success.

FAQs of Triangle Pack Batteries

We’ve compiled the most frequently asked questions about Triangle Pack Batteries. If you have other questions, feel free to reach out—we’re here to help.

They are ideal for full-suspension, mid-drive, and long-range eBikes that use triangle frame space for maximum battery volume.

High capacity, stable performance, secure frame fit, and extended range—especially for demanding or off-road applications.

Yes. You can customize voltage, capacity, cell type (18650/21700), connectors, and BMS functions based on your needs.

With quality cells and proper BMS, triangle packs typically support 600–1000 cycles at 80% DOD.

Pricing depends on configuration, but triangle packs are cost-efficient for large-capacity builds due to optimized internal space.

We provide 3D layout, wiring diagrams, and dimension drawings for confirmation before production.

Just send us your requirements (voltage, capacity, usage, etc.), and we’ll provide a detailed quote within 24 hours.

Yes. With a proper BMS and cell selection, triangle packs can handle high power output for mid-drive motors or cargo bikes.

Just follow standard lithium battery care—avoid deep discharge, use proper chargers, and store in a dry, cool environment.

Yes. We support custom layouts to fit your frame size or bag enclosure, including waterproof bag or hard shell integration.

E-Bike Battery Manufacturing Process

Advanced production lines for certified, high-performance lithium battery packs

3D design
Raw Materials
Assembling cells
Welding Packs of Cells
Assembling Packs of Cells
Aging & Testing
Packaging
Work Shop
Lithium battery intelligent automatic equalizer
Cell Tester
Dc power supply
Dc power supply

ISO 9001

Dangerous Goods

MSDS

CE

IEC

RoHs

UN38.3

Triangle Pack Battery: Your Complete Purchase Guide

Considering triangle pack batteries for your next eBike project? This quick guide will help you make an informed decision with ease. These batteries are ideal for high-capacity builds and are commonly used in full-suspension and long-range eBikes—making proper fit and configuration essential.

At Junda, we understand the technical and commercial requirements of your business. Let our team guide you to the best triangle pack battery solution—tailored to your voltage, range, and integration needs.

Table of Contents

Unit 1

What Are Triangle Pack Batteries Used For?

Triangle Pack Batteries are high-capacity lithium battery packs designed to fit inside the triangular frame space of e-bikes. Their compact yet spacious layout maximizes energy storage without compromising bike balance or aesthetics.

They are most commonly used in full-suspension mountain bikes, off-road utility bikes, and long-range commuter e-bikes. The triangle design allows for custom configurations that support high-output motors, advanced BMS, and extended riding range.

With their flexibility in layout, voltage, and casing, Triangle Pack Batteries are a go-to solution for manufacturers and assemblers seeking power, durability, and seamless integration within the e-bike frame.

Unit 2

Features of Triangle Pack Batteries

Triangle Pack Batteries offer several key features that make them a preferred choice for high-performance and long-range e-bikes:

  • Optimized Frame Fit: Designed to mount securely inside the triangle section of the e-bike frame, maximizing space without affecting balance or aesthetics.

  • High Capacity Options: Available in configurations ranging from 13Ah to 30Ah, supporting powerful mid-drive motors and extended travel distances.

  • Custom Layout Flexibility: Cells can be arranged to fit unique frame dimensions or waterproof bags, making these packs ideal for both OEM and aftermarket integration.

  • Durable Enclosure: Built for rugged use, triangle packs can be sealed in fabric bags or molded casings for off-road or utility e-bikes.

  • Advanced BMS Support: Supports smart features such as Bluetooth, temperature sensors, and CAN/UART communication, ensuring safety and performance monitoring.

  • Stable Output Performance: Maintains voltage consistency under load, delivering efficient power for hills, speed, and heavy cargo.

  • Easy Maintenance & Replacement: The modular design allows easy access for servicing or upgrading, reducing downtime for fleet operators and repair shops.

  • Compliant & Safe: All packs are tested to meet UN38.3, MSDS, CE, RoHS standards, ready for export to major markets.



These features make Triangle Pack Batteries a trusted choice for brands and assemblers building reliable, powerful, and well-integrated e-bikes.

Unit 3

Specification of Triangle Pack Batteries

Triangle Pack Batteries are engineered for performance-driven e-bikes that demand long range, high power, and reliable integration into the bike’s frame. With a flexible internal layout and support for multiple cell types and voltages, these batteries are a top choice for mountain bikes, off-road builds, and custom electric vehicles.

Whether you’re building a new model or replacing existing packs, the following specifications highlight what you can expect from a professionally designed and fully tested triangle battery pack:

Parameter Specification
Voltage Options 36V / 48V / 52V / 72V
Capacity Range 13Ah – 50Ah (customizable)
Cell Type 18650 / 21700 lithium-ion (Samsung, LG, EVE, etc.)
Configuration Custom layout to fit inside e-bike triangle frame
Discharge Current 15A – 40A continuous (BMS-dependent)
Charging Port DC2.1, DC2.5, or customized
Connector Type XT60, XT90, Anderson, or customized
BMS Functions Overcharge, over-discharge, short circuit, temperature protection, optional Bluetooth
Cycle Life ≥600 cycles @80% DOD
Operating Temperature -20°C to 55°C
Certifications UN38.3, MSDS, CE, RoHS (UL2271 optional)
Waterproofing Optional IP65–IP67 (with bag or sealed housing)
Unit 4

Precautions for Using Triangle Pack Batteries

To ensure safety, maximize lifespan, and reduce after-sales issues, Triangle Pack Batteries should be handled, stored, and maintained properly throughout their lifecycle. Below are the key precautions B2B customers should follow:



  • Use the Correct Charger: Always use a charger compatible with your battery’s voltage and BMS. Over-voltage or under-voltage charging can damage cells and pose safety risks.

  • Avoid Deep Discharge: Regularly discharging below 2.5V/cell reduces cycle life. Recharge before full depletion for longer service.

  • Monitor Temperature: During charging and discharging, keep the battery within a safe operating temperature range (-20°C to 55°C). Avoid exposure to high heat or freezing environments.

  • Handle with Care: Do not puncture, crush, or drop the battery. Use padded packaging for shipping or storage.

  • Prevent Short Circuits: Avoid direct contact between terminals and conductive materials. Ensure connectors are clean, dry, and properly insulated.

  • Check for Physical Damage: Inspect for cracks, bulges, or broken terminals before installation or reuse. Damaged batteries should not be used.

  • Follow Proper Storage Conditions: If unused for a long period, store the battery at 50–70% charge in a dry, ventilated area. Avoid moisture and direct sunlight.

  • Use Protective Housing: When installed inside bike frames or bags, ensure the pack is secure, protected from vibration, and not compressed by other components.

  • Don’t Disassemble Without Authorization: Opening sealed battery packs without technical support may cause damage or void warranty.

  • Dispose Responsibly: Follow local regulations when recycling or disposing of lithium batteries. Do not burn or discard in regular trash.



By observing these precautions, e-bike brands and distributors can reduce risk, lower maintenance costs, and ensure safe use across their supply chain or service network.

Unit 5

Applications of Triangle Pack Batteries

Triangle Pack Batteries are engineered to meet the high power and long-range demands of modern electric bikes. Their structural shape and customizable layout make them the go-to choice for performance-focused models. Here are the key applications:

Full-Suspension Mountain eBikes

Triangle packs are ideal for full-suspension frames where traditional down-tube or rear rack batteries won't fit. Their frame-integrated design ensures better weight distribution and shock resistance, supporting mid-drive motors with 750W+ power.

Utility & Cargo eBikes

For delivery and heavy-load bikes, triangle batteries offer the extra capacity (up to 30Ah) needed for long-distance routes. Their internal layout can be tailored for waterproof bags or tool-free replacement—perfect for fleet use.

Man riding electric bicycle on sunny day

Commuter & Touring eBikes

Triangle packs enable longer rides between charges—ideal for long-distance commuters or touring eBike brands. When paired with high-efficiency controllers, they deliver smooth, stable power over extended rides.

Man assembling electric bikes in workshop.

eBike Assembly & OEM Projects

Triangle battery packs are favored by assembly plants and eBike brands that need flexible internal configurations. Whether SKD/CKD kits or full vehicle assembly, triangle packs provide the volume and electrical headroom for customized integration.

Mountain bike on forest trail with panniers.

Off-Road & Adventure eBikes

Off-road and hunting eBikes benefit from triangle packs due to their durability, shock absorption, and enclosed wiring. Packs can be encased in waterproof bags or hard shells to handle rugged terrain and varied weather conditions.

Technician testing electronic device with multimeter.

Battery Replacement & Aftermarket Service

Triangle battery packs are also widely used in service centers and eBike shops for replacements. With flexible BMS, connector, and cell options, they’re a versatile fit for various brands’ frame geometry.

Unit 6

How to Choose the Right Triangle Pack Battery?

Choosing the right Triangle Pack Battery is essential to ensure your e-bike project delivers optimal performance, safety, and range. Use the checklist below to make a well-informed decision tailored to your application:

  1. Define Your Application
    Understand your e-bike type and usage. Are you building an off-road, utility, or long-range commuter bike? Triangle packs are best suited for mid-drive, high-power, or integrated frame designs.

  2. Check Frame Space & Mounting Constraints
    Confirm your bike frame has enough internal triangle space to install the battery. Consider waterproof bag designs or customized mounting brackets.

  3. Select Voltage & Capacity
    Choose 36V / 48V / 52V depending on motor compatibility. Match your desired range with capacity options (typically 13Ah–30Ah).

  4. Choose Cell Type & Configuration
    Decide between 18650 or 21700 cells, and select brands (Samsung, LG, EVE) based on performance, cost, and life cycle.

  5. Assess BMS Functionality
    Does your project require basic protection or advanced features like Bluetooth, CAN/UART communication, or temperature sensors?

  6. Confirm Connector & Output Interface

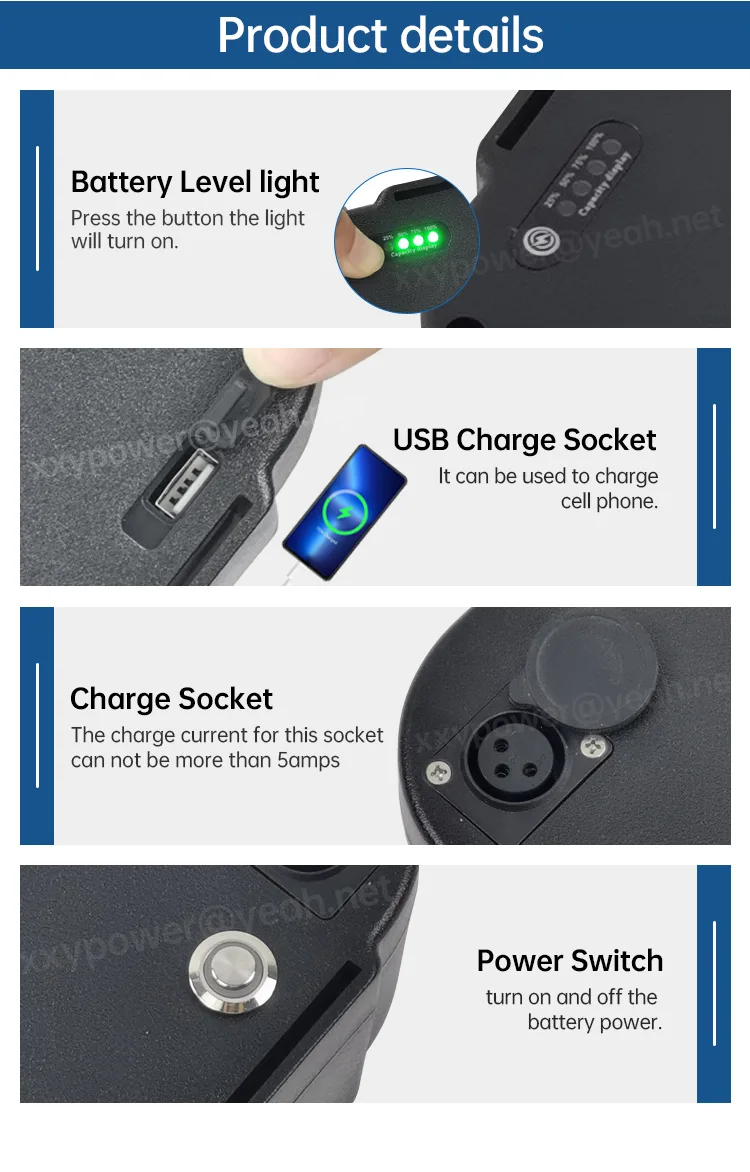

    Ensure the discharge and charging connectors (XT60, Anderson, DC2.5, etc.) are compatible with your controller and charger systems.

  7. Understand Operating Conditions
    Will your battery be used in cold, hot, or wet environments? Select models with appropriate waterproofing (IP rating), insulation, and temperature tolerance.

  8. Estimate Expected Lifespan
    Look for high-quality BMS and premium cells if your project demands longer cycle life (600+ cycles at 80% DOD).

  9. Balance Budget and Customization Needs
    Custom layouts, branding, and packaging add value but affect cost. Define which features are essential and where flexibility is allowed.

By reviewing these key points, you’ll be able to choose a triangle battery pack that integrates seamlessly into your product—and supports your performance and market goals.

Unit 7

In Summary

Triangle Pack Batteries have become a preferred solution for e-bike manufacturers and assemblers seeking high-capacity, integrated power systems. With their customizable layout, frame-mounted design, and support for advanced features, they offer an ideal balance of performance, durability, and flexibility.

At Junda, we provide a full range of standard and tailor-made triangle battery packs to meet your specific project needs. With extensive experience in the lithium battery industry, we help global partners build safer, smarter, and longer-range e-mobility products—on time and to spec.

Whether you’re designing new models, replacing outdated packs, or sourcing for wholesale and aftermarket needs, Junda is your trusted partner for triangle battery solutions.

Start Your Project with Us

Tell us what you need—we’ll respond with a solution, price, and lead time.
